Product Details
- Place of Origin: leqing
- Brand Name: aokai

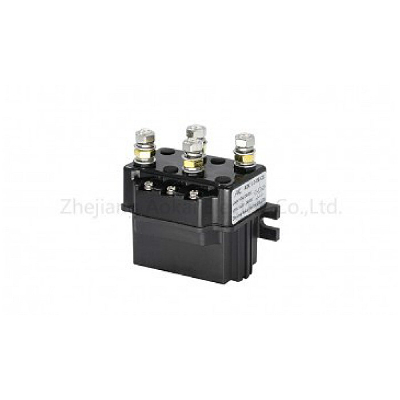

- Model Number: ADC100A
The product has two sets of contact switch, which can be used in auto electric winch, telecommunication equipment, engineering machinery, storage battery, electric forklift trucks, trains, ships, uniterruptible power supply and other electric control system.
Technical Parameters
| Rated Voltage | 12V,24V,36V,48V,60V,72V,84V,120V,etc. |
| Contact Circuit Rated Load Current(A) | Continuous 50A,DE Short Work Interrupted 200A |
| Typical Voltage Drop Across Contacts Per 100A | ≤80mV |
| The Cooling Pull-in Voltage At (20±5)℃(V) | ≤70% |
| The Cooling Pull-out Voltage At (20±5)℃(V) | ≥5%,≤40% |
| The Allowed Range Of Coil Voltage | ±20% |
| Drop-out Time(N/O Contacts To Open) | ≤30ms |
| Pull-in Time(N/O Contacts To Close) | ≤20ms |
| Disconnect The Maximum Contact Bounce Time | ≤5ms |
| Insulation Resistance | ≥50MΩ |
| Electric Strength To Resist | 50Hz/60Hz 1000VAC/1min |
| Overload Current | ≤7le,≯1s |
| Coil Power(W) | Continous≤8.0W Intermittent≤28.0W |
| Electric Life | Continous 30000 times,Intermittent 5000 times |
| Mechanical Life | 300 Thousand times |
| Work Specification | Continous Or Intermittent |
| Contact Form | 2NO And 2NC |
| Contact Material | AgCdO/AgCuO |
| Start Current | ≤4A |
| Technical Specification | GB14048.4-2010 |
Physical Performance
| Body Size | 50mm*70mm*77mm(max) |
| Weight | ≤400g |
Use Of The Environment
| ALtitude | ≤2Km | Ambient Temperature | -25℃~ 55℃ |
| International Protection | IP56 | Installation Type | Ⅲ |
| Way To Install | Andy | Vibration | 2.5g,(5~50)Hz |
| Impact | 50g,11ms(Half-sine Wave) | ||
