- Place of Origin: leqing
- Brand Name: aokai
- Model Number: ADH50A

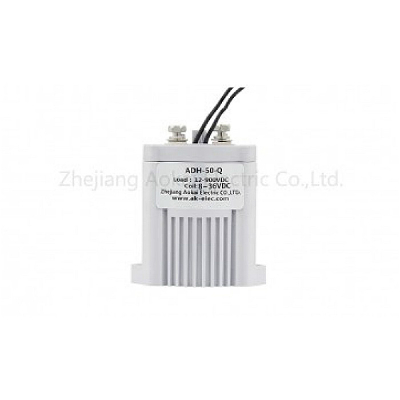

ADH Series HVDC Contactor are widely used in Electric vehicles, hybrid electric vehicles, fuel cell cars, construction machinery, photovoltaic power generation, wind power, battery charging and discharging system, dc voltage power supply control, and other areas of the dc high voltage.
Coil Parameters
Parameters | Standard Type Voltage | Energy-Saving Type Voltage | |
12VDC | 24VDC | 12/24VDC | |
Work Voltage | 9~16 | 18~32 | 8~36 |
Max Voltage | 16 | 32 | 36 |
Action Voltage | ≤9 | ≤18 | 7~8 |
Release Voltage | ≥1 | ≥2 | 5~6 |
Coil Resistance | 26 | 96 | 4.7 |
Min Start Current(A) | 0.46 | 0.25 | 1.5 |
Transient Surge Curren(A) | — | — | 2.5(0.1s) |
Average Holding Current(A) | 0.46 | 0.25 | 0.18(@12V) |
Steady State Powet(W) | 5.5 | 6 | 2~2.3 |
Actuation Time(ms) | ≤25 | ≤25 | ≤20 |
Release Time(ms) | ≤10 | ≤10 | ≤10 |
Bounce Time(ms) | ≤5 | ≤5 | ≤5 |
- Place of Origin: leqing
- Brand Name: aokai
- Model Number: ADH50A
Main Contact Parameters
Contact Form | 1H | Leading-Out | M4Internal Thread |
Contact Resistance | 0.5mΩ(50A) | Rated Load Voltage | 12-900VDC |
Maximum Switching Current | 500A 320VDC(≥1 times) | Maximum Switching Power | 160kW |
Rated Load Current | 50A | Rated Electric Life | 20,000(times) |
Min load | 1A12VDC | Standards For Electric Current (10mm2 Line) | 50A |
Short Time Overload Current(10mm2 @40℃) | 75A 15min,100A 3min,150A 3s |
Conditions Of Usage
Operate Temperature | -40℃~85℃ |
Operating Humidity | 5~95%RH |
IP Grade | IP67 |
Dimension(W*H*D,mm) | 54.7*41.8*62 | 54.7*49.2*62 |
Weight(g) | Q:220g; P:190g |
