Product Details
- Place of Origin: leqing
- Brand Name: aokai

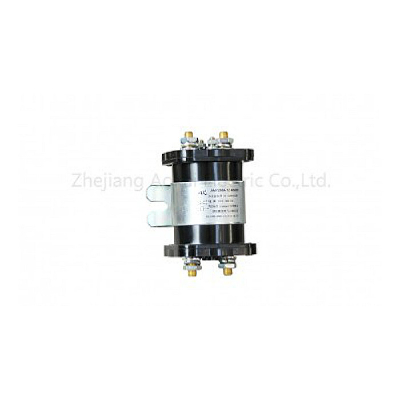

- Model Number: ANR200/500-1Z
This product have one normally open contact, for the battery or the rectification power and supplies power, using for handling drawing, the pump motor and other electronic vehicles.
Technical Parameters
| Rated Voltage | 12V,24V,36V,48V,60V,72V,84V,120V,etc. |
| Contact Circuit Rated Load Current(A) | 200A, 500A |
| Typical Voltage Drop Across Contacts Per 100A | ≤80mV |
| The Cooling Pull-in Voltage At (20±5)℃(V) | ≤70% |
| The Cooling Pull-out Voltage At (20±5)℃(V) | ≥5%,≤40% |
| The Allowed Range Of Coil Voltage | ±20% |
| Drop-out Time(N/O Contacts To Open) | ≤30ms |
| Pull-in Time(N/O Contacts To Close) | ≤20ms |
| Disconnect The Maximum Contact Bounce Time | ≤5ms |
| Insulation Resistance | ≥50MΩ |
| Electric Strength To Resist | 50Hz/60Hz 1000VAC/1min |
| Overload Current | ≤7le,≯1s |
| Coil Power(W) | ≤38.0W |
| Electric Life | 20000 times |
| Mechanical Life | 300 Thousand times |
| Work Specification | Continous |
| Contact Form | 1NO And 1NC |
| Contact Material | AgCdO/AgCuO |
| Auxiliary Contact Rated Load(Choose) | 2A/48VDC, 5A/24VDC |
| Technical Specification | GB14048.4-2010 |
Physical Performance

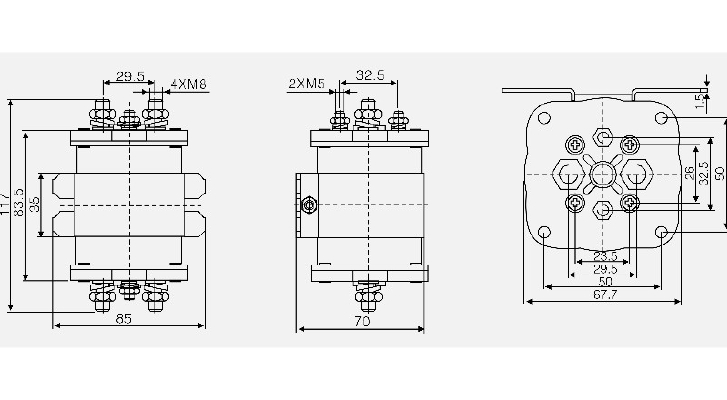

| Body Size | 67.7mm*84.5mm*117mm(max) |
| Weight | ≤750g |
Use Of The Environment
| ALtitude | ≤2Km | Ambient Temperature | -25℃~ 55℃ |
| International Protection | IP56 | Installation Type | Ⅲ |
| Way To Install | Any | Vibration | 2.5g,(5~50)Hz |
| Impact | 50g,11ms(Half-sine Wave) | ||
